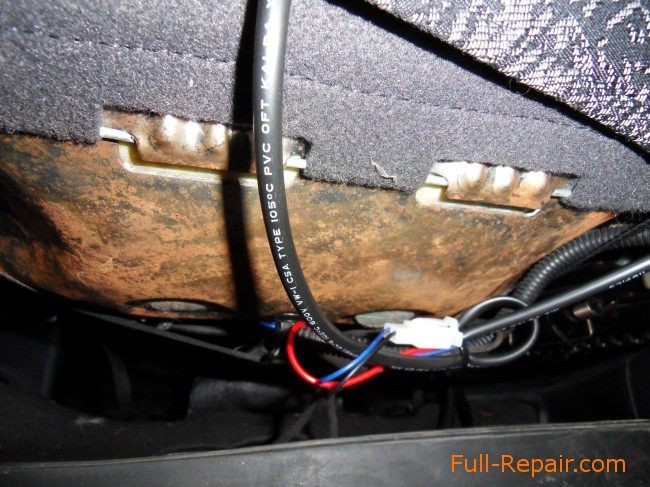

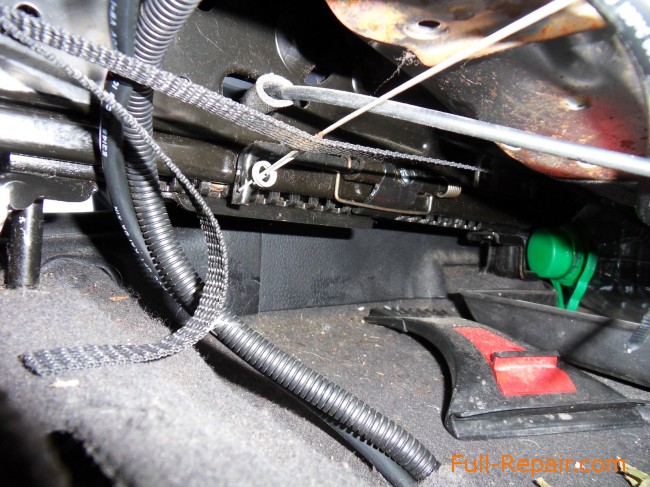

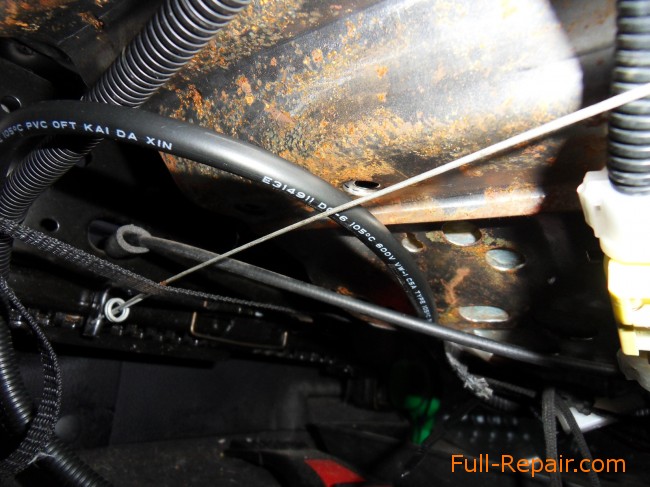

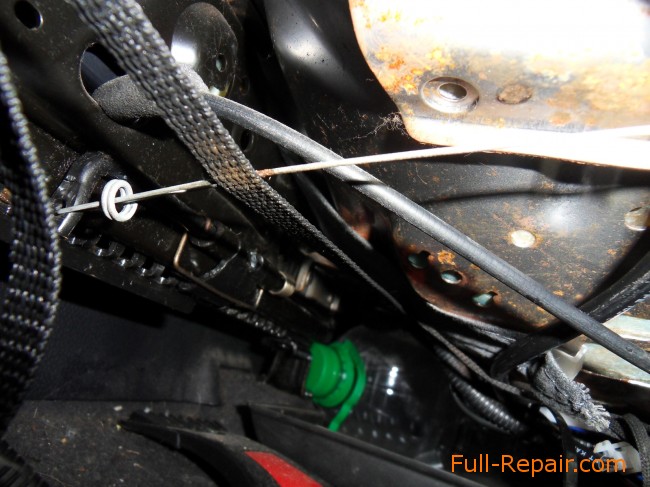

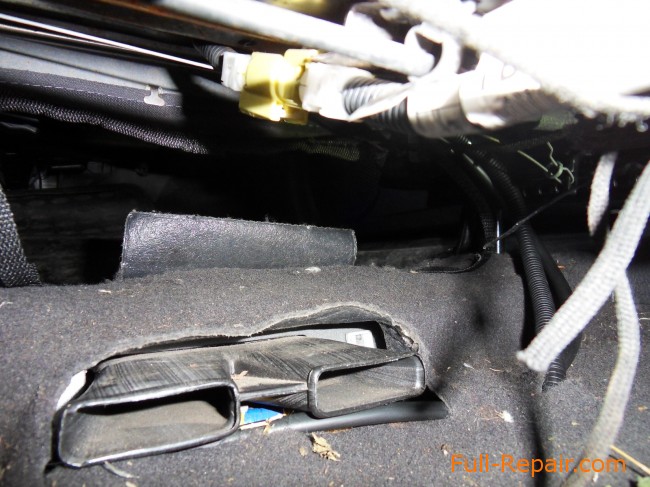

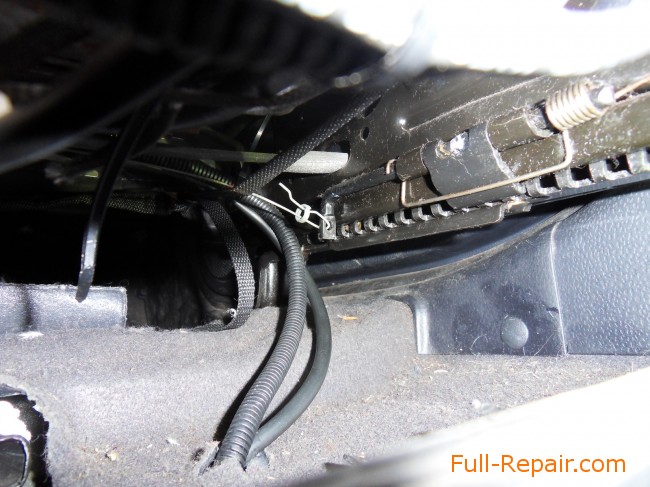

Full-Repair.comA few more photos of the wiring under seats:

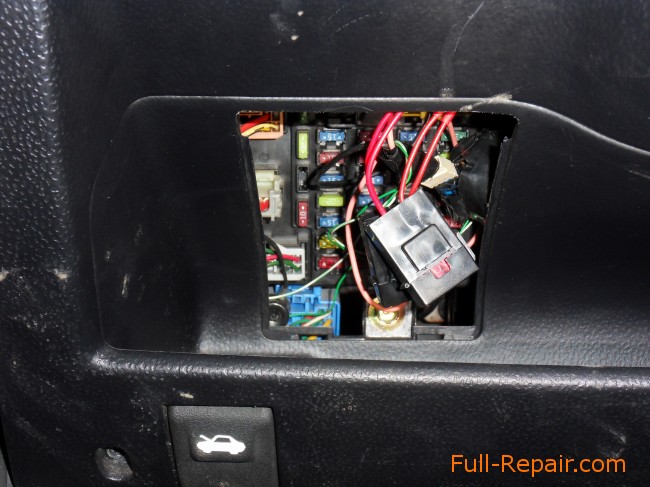

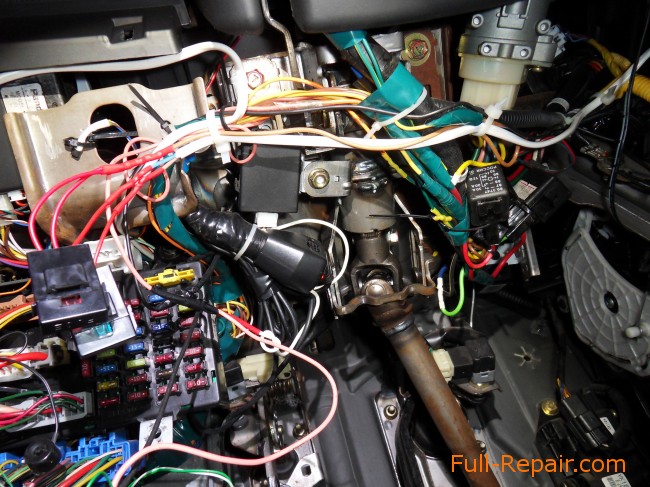

Power supplied from the ignition of the wire where there is 12V when the ignition. This car wires were put under the floor covering around with cables gearbox. Fuses are somewhere near the ignition switch to manual availability without disassembly (so you can change the case of burnout).

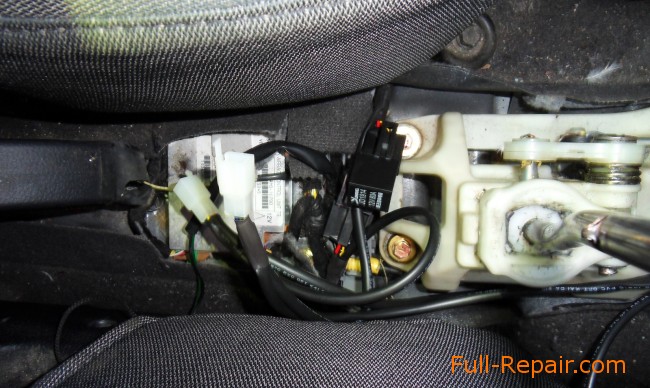

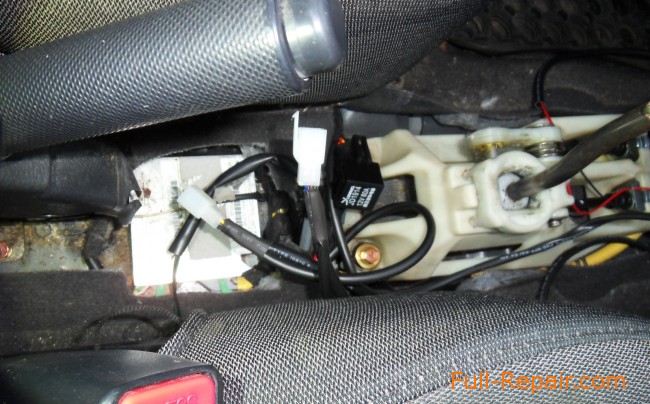

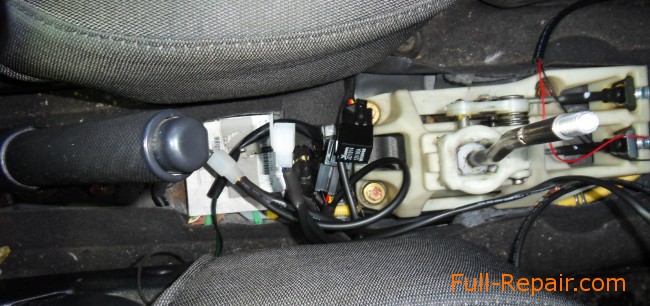

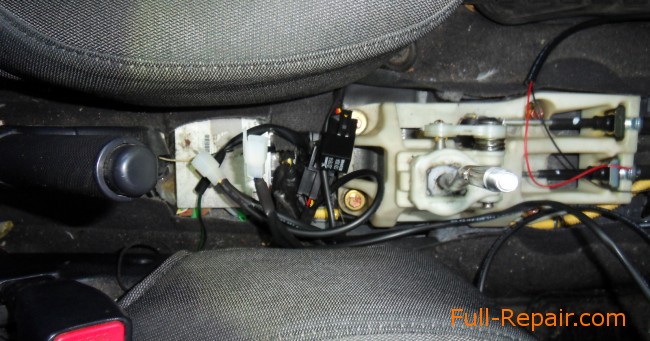

Connect the wires, relays, etc., except the buttons (Their first need threaded through the holes, and then connect).
Connect button

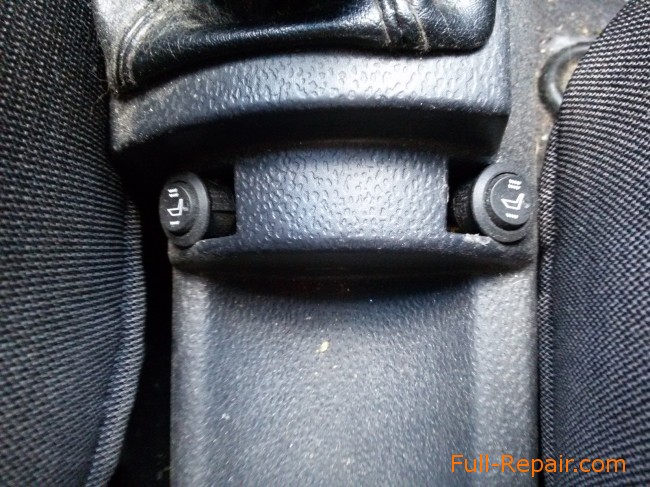

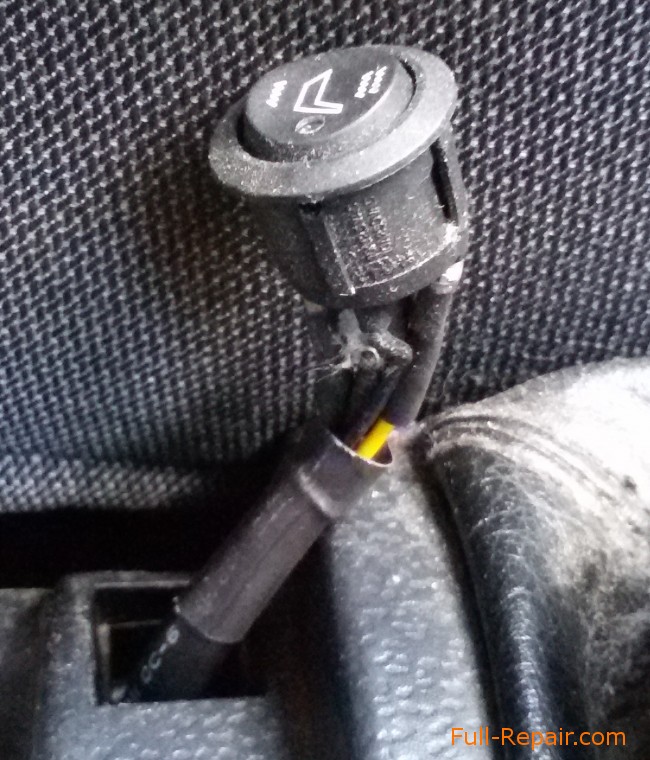

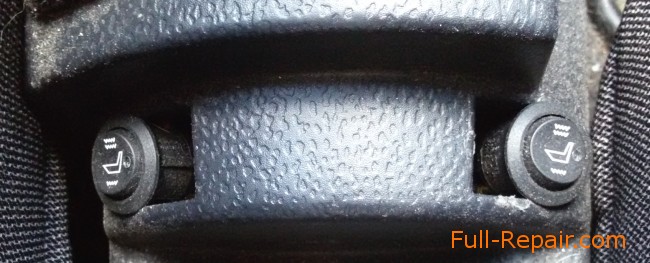

You can make beautiful, ordering regular buttons inclusion of heating. But there are drawbacks: only one active position, the intermediate heating a quarter turn on the power will not work. Or only a quarter, but not fully. And still need to escape-buy separately or button to order and wait. Another option is less beautiful, but comfortable, fast and with two positions-use the buttons that came in the kit. The photos below and done.
Winter is very save, while the machine is cold. Especially true for diesel engines, which in the cold in a traffic jam at all cool.
