Emergency Auto Starter Intego AS-0211


Views: 520

← 1 2 3 4 →

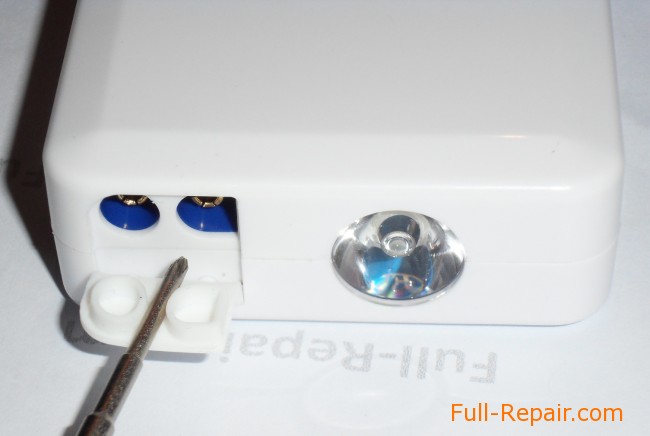

Car connector Intego AS-0211
Car connector Intego AS-0211
Car connector Intego AS-0211
Cog under the label

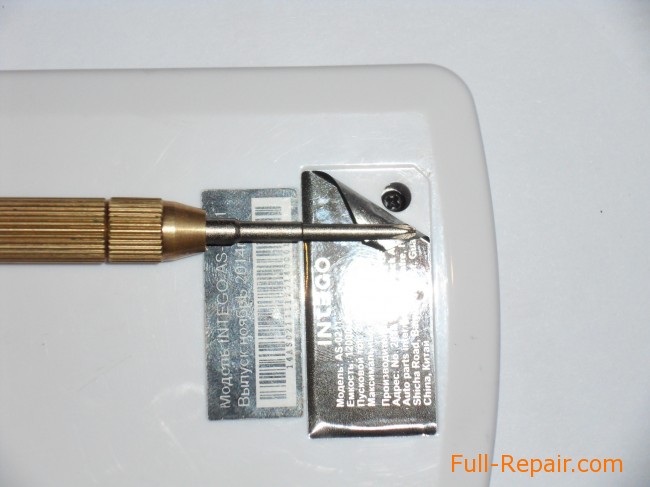

Fastened the two halves of the plastic casing only one small screw under the label.

Sidebar with all connectors, except for

This is only a safety screw, keeps the body at a fairly strong latches located around the perimeter.

Let us examine the same device, and a look inside!

Open the case.

open housing
open housing

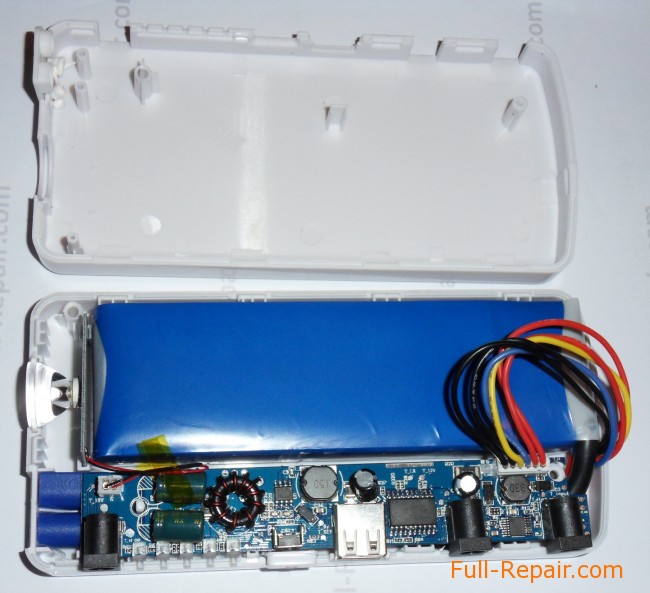

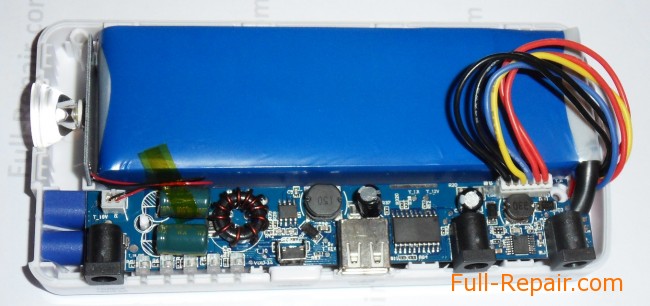

Inside we see a great Power Cell, a large fee, as well as a small fee with LED and lens.

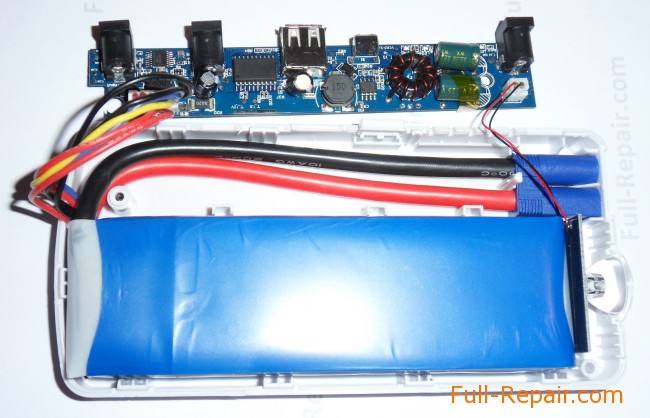

The main board is removed (however, small and everything else-too), we see a thick wires going to the "Road" connector.

The board removed
